Commercial Roof Wind Uplift: How to Read FM Ratings and Check Edge Risk

Wind moving around a building creates pressure differences over its surfaces. The loads depend on building geometry, height, exposure, openings and the specific roof zones under consideration. A design professional calculates the required pressure using the applicable standards and project parameters. A roofing manufacturer's test result describes a particular assembly under a test method and configuration.

The right comparison is between the project's required resistance and an eligible tested assembly, with the required design factors and approvals correctly applied. A marketing claim of “hurricane-rated membrane” does not answer that question.

FM designations such as 1-90 refer to classifications and uplift-pressure ratings of tested roof assemblies. The number is not a wind speed in mph. A rating cannot simply be transferred to another insulation, adhesive, fastener pattern or deck. FM's published design guidance and the actual RoofNav listing are more relevant than an isolated number repeated in a brochure.

Review the assembly identifier, tested components, deck, attachment conditions and applicable rating for the proposed work. Where a project requires a higher-rated or modified assembly, have a qualified professional establish compliance rather than improvising field changes.

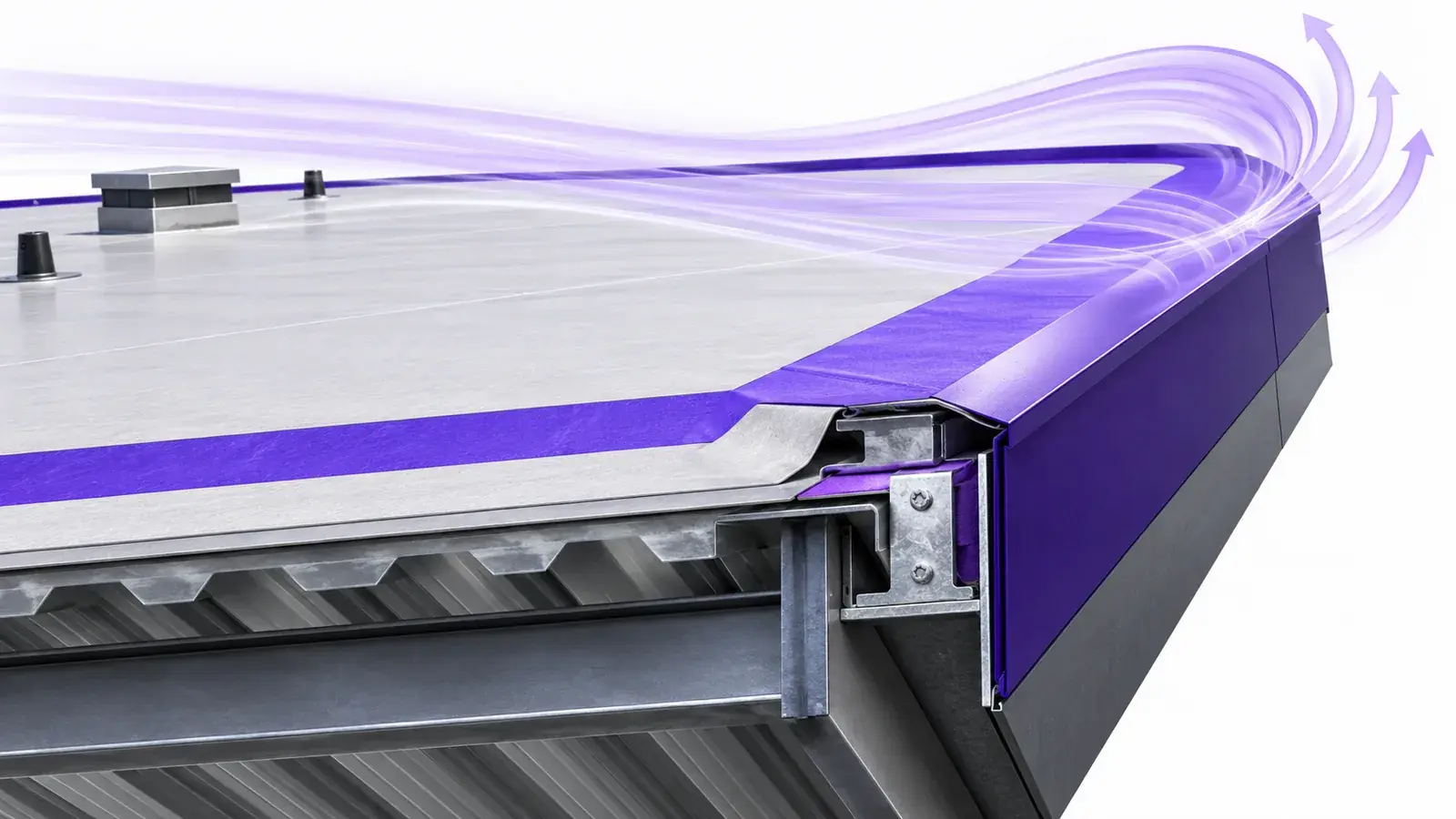

Wind suction often differs substantially between the central roof field, perimeter and corners. The edge metal, coping, parapet details, membrane termination, insulation attachment and structural deck form a connected resistance path. Weakening one part may negate an otherwise strong field installation.

Design drawings should show relevant zones and detailing. During inspections, record displaced coping, loose terminations, fastener distress, membrane billowing, lifted plates and other visible concerns without claiming a precise residual capacity from photographs alone.

Fully adhered, mechanically attached, induction-welded and other approved roofing systems transfer forces differently. The system selection depends on the tested assembly and project conditions, not a generic claim that one method is strongest. For mechanically attached systems, both substrate strength and the approved fastener pattern matter. For adhered systems, compatible materials, preparation and application conditions are essential.

Replacing one component with a “similar” part may invalidate the assumed rating. Keep substitutions documented and approved before installation.

A 40,000-square-foot warehouse sits in an area with a severe-wind report. The map identifies possible exposure, but it cannot confirm that the roof's attachment failed or that its FM rating was inadequate. The useful next steps are to identify the roof's installation records, relevant approved assembly, roof geometry, visible damage and any maintenance changes affecting the perimeter. A qualified evaluation then determines whether repair or engineering review is required.

The storm intelligence guide focuses on weather evidence and territory choices. Wind-uplift review begins when the work reaches the actual building assembly.

A project file should contain building height and geometry if available, design criteria, applicable code edition, FM or UL documents as relevant, manufacturer's approved assembly, deck and fasteners, zone diagrams, perimeter details, inspections and replacement history. For existing roofs with limited records, explicitly mark assumptions as unverified.

CapXos' commercial-property information can support early building research. Inspect can keep photographs and notes associated with roof sections and Takeoff can record perimeter lengths and quantities. Neither tool calculates structural wind loads or certifies a roof assembly.

A drawing may specify one attachment pattern while the visible existing roof tells a less complete story. Repairs, reroof overlays and mechanical installations can interrupt the original construction. An inspector can photograph and document potential deficiencies, but cannot infer hidden fastener spacing or deck-pullout strength from a satellite image. Where such details are material to the repair, recommend the appropriate invasive verification, contractor records or engineering assessment rather than turning a remote risk score into a design conclusion.
